Specifications
| Feature | Details |
|---|---|
| Fiber Alignment | 6 motors, Core-to-Core alignment |
| Applicable Fibers | SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655), BI (G.657) |
| Cladding Diameter / Sheath Diameter | 80-150μm / 100-1000μm |
| Cleave Length | 5mm to 16mm (with sheath clamp) |
| Splice Modes | 100 modes, supports self-defined parameters |
| Typical Splice Time | 7 sec. (SM FAST mode) |
| Typical Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF, NZDS), 0.02dB (BI) |
| Return Loss | >>60dB |
| Heating Mode | Max. 20 |
| Heating Time | 9 sec. |
| Applicable Protection Sleeves | 10~60mm |
| Splice Result Storage | 20,000 splices |
| Splice Image Storage | 800 images |
| Viewing System | 2-axis CMOS camera, 4.73” HD color capacitive touchscreen |
| Magnification | Up to 760X (X / Y / Both X & Y simultaneously) |
| Wireless Connectivity | GPS tracking via inbuilt SIM card |
| Ports | MicroSD & USB (software updates, data management) |
| Electrode Life | Typical 5000 splices |
| Battery | 5600mAh, supports 240+ splices & heating cycles |
| Charging Time | 4 hours (80% charge in 2 hours) |
| Power Supply | AC100-240V, 50/60Hz |
| Tension Test | 2N |
| Operating Conditions | Altitude: 0-5000m, Wind: 15m/s, Temp: -10°C to 50°C, Humidity: 0-95%RH |
| Storage Conditions | Humidity: 0-95%RH, Temp: -10°C to 80°C (Battery: -10°C to 40°C) |
| Size / Weight | 133mm(W) × 144mm(D) × 133mm(H), 1.5kg (1.8kg with battery) |
Description

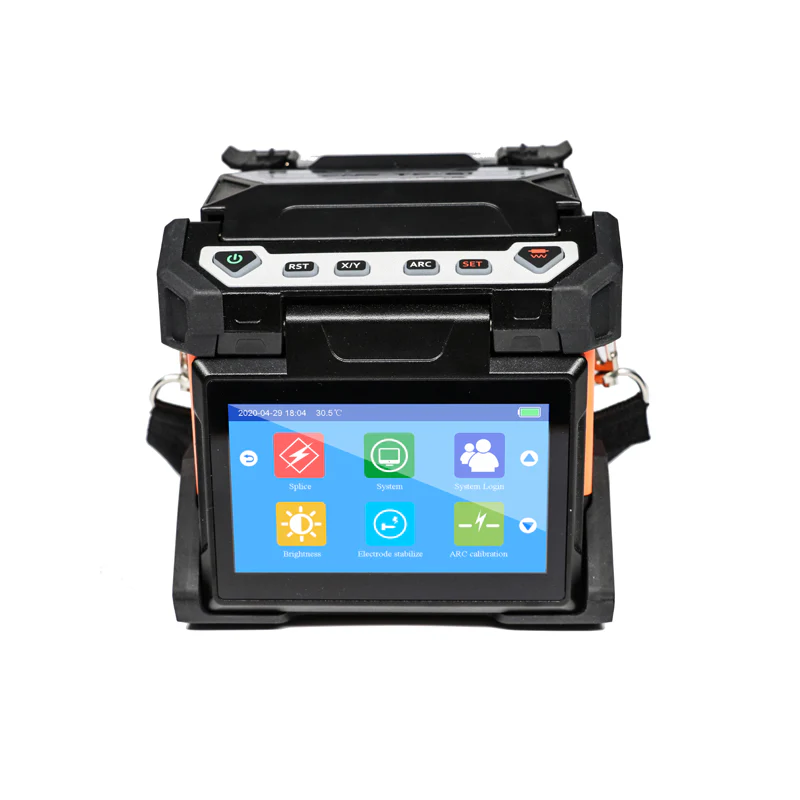

TEKCN TC-600 Advanced Fusion Splicer 6-Motor Core Alignment
This high-precision 6-motor core-to-core alignment fusion splicer is designed for ultra-low splice loss and high-speed fiber splicing. It supports multiple fiber types, including SMF, MMF, DSF, NZDSF, and BI fibers, making it ideal for telecom, enterprise, and data center applications.
With a 4.73-inch HD touchscreen, wireless GPS tracking, and a high-capacity battery, this fusion splicer ensures reliable, fast, and efficient fiber optic splicing in various working conditions.
What is the price of the TEKCN TC-600 Fusion Splicer Core Aligning ARC Splicing Machine in Bangladesh?
The latest price of the TEKCN TC-600 Fusion Splicer Core Aligning ARC Splicing Machine in Bangladesh is 1,34,000৳. You can buy it at the best price from our website or visit any of our showrooms.
