Specifications
| Feature | Details |
|---|---|
| Model | INNO A3 |
| Alignment Method | Active Clad Alignment (4 motors) |
| Number of Fibers | Single |
| Applicable Fibers | SM (G.652 & G.657) / MM (G.651) / DS (G.653) / NZDS (G.655) / CS (G.654) / EDF |
| Coating Diameter | 100 – 3000μm |
| Cladding Diameter | 80 – 150μm |
| Cleaved Fiber Length | 5 – 16mm |
| Typical Splice Loss | SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB |
| Return Loss | >> 60dB |
| Estimated Splice Loss | Available |
| Splice Time | 7 seconds (Quick Mode) |
| Splice Modes | Preset 6 modes, up to 320 customizable modes |
| Heating Sleeve Compatibility | 20 – 60mm |
| Heating Modes | Max 32 modes |
| Pull Test | 1.96 – 2.25N |
| Monitor | 4.3-inch color LCD touchscreen |
| Fiber View & Magnification | X, Y, X/Y (120-240X) |
| Results Storage | 10,000 splice data & images |
| Power Supply | AC 100 – 240V input, DC 9 – 14V input |
| Battery | 3000mAh (150 cycles standard, 200 cycles power-saving mode) |
| Electrode Life | 5500 ARC discharges |
| Connectivity | USB Type-C |
| White LED | 2 LEDs |
| Dimensions | 197mm(W) x 137mm(D) x 87mm(H) (with rubber bumper) |
| Weight | 1.206kg (with battery), 0.997kg (without battery) |
Description

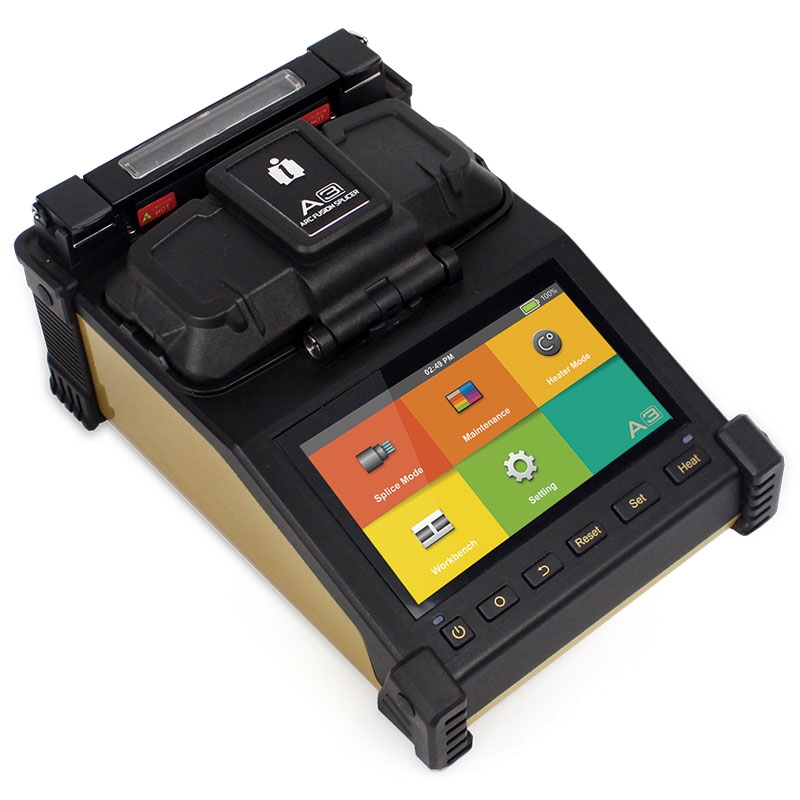

INNO A3 Clad Alignment Arc Fusion Splicer at Alif Network
The INNO A3 Clad Alignment Fusion Splicer combines cutting-edge splicing technology with a compact and lightweight design, making it an ideal solution for fiber optic professionals. Featuring active clad alignment (4 motors) and advanced splice loss estimation, the A3 ensures high-precision splicing with minimal loss.
With a 4.3-inch color LCD touchscreen, dual white LEDs for low-light environments, and a dynamic GUI interface, the A3 offers ease of use and operational efficiency. The durable construction and powerful 3000mAh battery support up to 200 splicing and heating cycles in power-saving mode, ensuring reliability in both indoor and outdoor conditions.
What is the Price of an INNO A3 Clad Alignment Arc Fusion Splicer in Bangladesh?
The latest price of the INNO A3 Clad Alignment Arc Fusion Splicer in Bangladesh is 159,000৳. You can purchase it at the best price from our website or visit our showrooms. Stay updated by subscribing to our YouTube Channel.
