Specifications
| Feature | Specification |
|---|---|
| Alignment Technology | Core Alignment (Active Fusion Control) |
| Splicing Time | 6 seconds (SM Fast Mode) |
| Heating Time | 16 seconds |
| Applicable Fibers | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BI (G.657) |
| Fiber Cladding Diameter | 80-150 µm |
| Fiber Coating Diameter | 100-1000 µm |
| Cleave Length | 8-16 mm |
| Average Splicing Loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB, BI: 0.02dB |
| Return Loss | > 60dB |
| Splice Result Storage | 20,000 splices (Automatic Loop Storage) |
| Splice Image Storage | Max. 800 images |
| Visual System | Dual X and Y view, 300X magnification, 760X single view |
| Display | 5.0-inch touchscreen with graphical interface |
| Connectivity | MicroSD & USB ports, wireless cleaver tracking |
| Electrode Life | 5000 splices |
| Power Supply | AC 100-240V, 50/60Hz |
| Battery Capacity | 5600mAh, supports 300 splice/heat cycles |
| Charging Time | 80% charge in 2 hours, full charge in 4 hours |
| Operating Conditions | Temperature: -20 to 50°C, Humidity: 0-95%RH, Altitude: 0-5000m, Wind: up to 15m/sec |
| Storage Conditions | Temperature: -40 to 80°C (Battery: -10 to 40°C), Humidity: 0-95%RH |
| Weight | 1.8 kg (including battery) |
| Dimensions | 133 x 144 x 133 mm |
Description

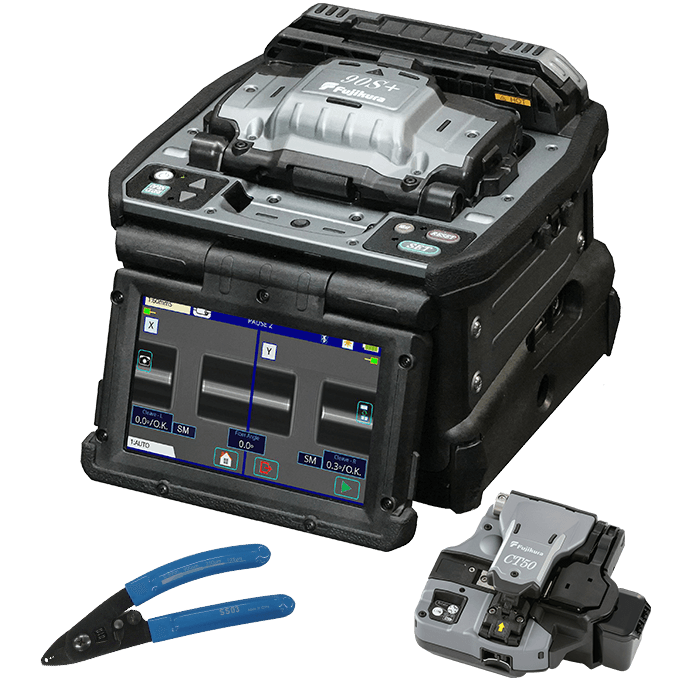

Fujikura 90S+ Core Alignment Fusion Splicer
The Fujikura 90S+ is an advanced core alignment fusion splicer designed to optimize fiber splicing performance across multiple applications. Whether working with bend-insensitive fibers, long-haul networks, splice-on connectors, or optical modules, the 90S+ ensures high efficiency, low splice loss, and precise fiber alignment.
With Active Fusion Control (AFC) technology, the 90S+ enhances splice quality by dynamically adjusting arc power, ensuring the best results even with poor cleave angles. Wireless cleaver tracking and automated operations significantly reduce the need for manual calibration and maintenance, allowing for a smoother workflow.
This splicer also features an integrated workstation case, a 5.0-inch touchscreen interface, and an extended battery life capable of 300 splice & heat cycles per charge. These features make the 90S+ an ideal choice for field technicians, data centers, and telecom professionals looking for a high-performance, low-maintenance splicing solution.
What is the Price of Fujikura 90S+ Core Alignment Fusion Splicer in Bangladesh?
The latest price of the Fujikura 90S+ Core Alignment Fusion Splicer in Bangladesh is 334,000৳. You can purchase it at the best price from our website or visit our showrooms. Stay updated by subscribing to our YouTube Channel.
